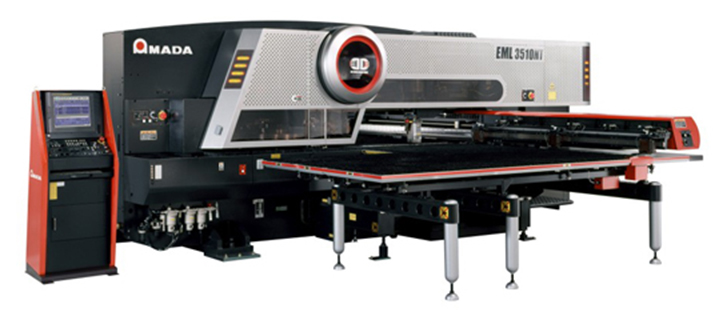

The next generation of punch/laser technology, the EML NT, combines the high punching speed and forming flexibility of the innovative Electric Motor (EM) turret punch press with the unlimited shape cutting capabilities of a laser. This results in a machine that requires minimum setups and affords extremely quick turnarounds, making it ideal for the high production of short-run sheet metal parts, particularly those that incorporate forming or have many holes.

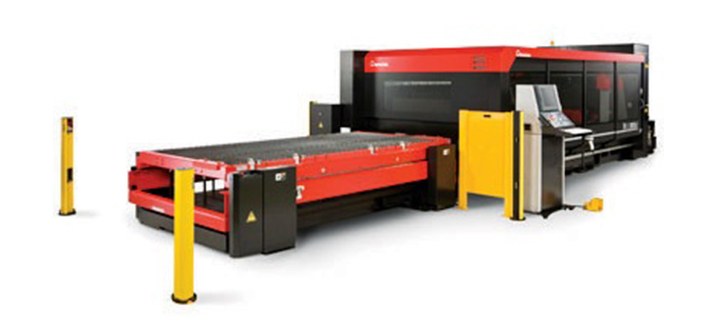

FOM2 3015 NT
The FOM2 3015 NT laser represents the third generation of AMADA’s proven FO series that was introduced in 1999. The FOM2 3015 NT combines features available on the FO series of lasers as well as some of the leading-edge technology available on AMADA’s F1 linear drive systems. Equipped with a solid-cast frame, water assisted cutting, and a high-precision motion system, the FOM2 3015 NT boasts new features such as automatic nozzle changer, cut process monitoring, and auto-pierce detection.
spec(fo-3015)
Maximum Fabricated Size
3070×1550×200mm
Maximum Work Mass
850kg
Rated output
4000w
The weight of a machine
12ton

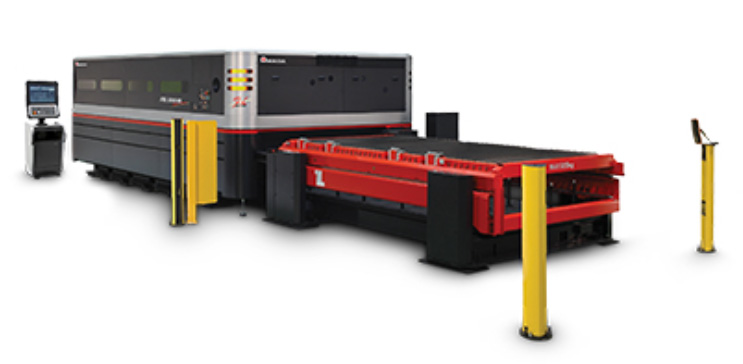

FOL 3015 AJ
FOL 3015 AJ Standard Features
The FOL AJ is engineered to produce the highest quality parts at unmatched speed while reducing operating costs and environmental waste. The benefits of fiber laser technology are:
Faster cutting of thin material (2 to 4 times that of a comparable 4000 W CO2 laser)
Superior speed and edge quality in material thicknesses up to 7/8" compared to other solid-state systems
P.R.E. (Process Range Expansion) by providing the ability to laser cut copper, brass, titanium and other materials that were previously difficult to process
No optics or space inside the cavity of the laser source - eliminating costs associated with mirrors and downtime for alignment of optics
The reduction of environmentally harmful emissions due to it's solid-state technology—which does not require laser gas to generate the laser beam
Less power is consumed than its CO2 counterpart. Since there are no optics to keep cool, a smaller, more efficient chiller further enhances cost savings
With all three axes driven by linear drives, it boasts rapid traverse speeds of 13,380"/min. and a 5G acceleration speed for the entire work envelope — making it the fastest 5´ x 10´ laser system available
The wear of components typically associated with ball-screw or rack and pinion systems has been eliminated
An auto-nozzle changer automatically changes nozzles based on material cut conditions ensuring that the laser does not sit idle while waiting for an operator to setup for the next job
The shuttle tables externalize the material setup, eliminating interference with the cutting process
AMADA’s AJ2000 and AJ4000 oscillators (fiber engines) drastically reduce electrical consumption (1/ 3 the amount of energy consumed by the typical CO2 oscillators)

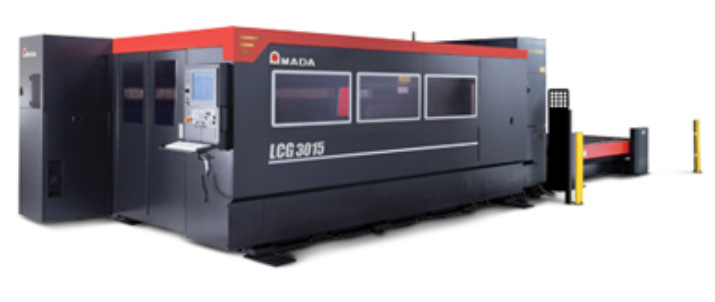

LCG 3015
The LCG 3015 is the latest addition to AMADA's CO2 line of laser machines. The LCG was developed after listening to the voice of our customers who wanted a low-cost laser machine to meet their budget, but refused to compromise on cut quality, machine accuracy, and overall expandability. AMADA took these requests and achieved a machine that has a lower capital investment with a cutting edge resonator and an advanced motion system.
